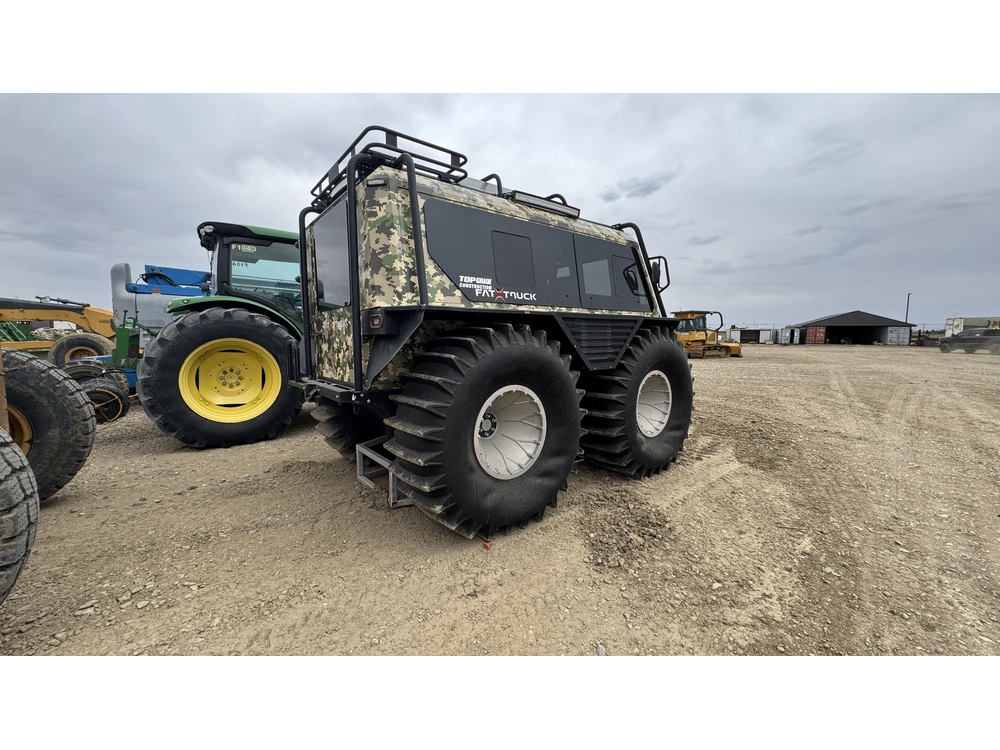

2021 FAT TRUCK 2.8C

 Payload on land
Payload on water
Passenger capacity
Maximum speed on land
Maximum speed on water
Maximum uphill & downhill
Maximum sidehill
Turning radius
Base vehicle shipping weight
Ground pressure fully loaded
2000 lb (905 kg)
1500 lb (679 kg)
4 (2 front + 2 rear)
20 mph (32 km/h)
3.1 mph (5 km/h)
35°/ 70%
22°/ 40%
0°
4200 lb (1900 kg)
2 lb/po² (0.14 kg/cm²)
SAFETY FEATURES
ROPS
EPA / Emission
Brakes
ISO 3471
Tier 4 Final/Stage V
Automatic safety brake
DIMENSIONS
Height with roof rack
Height with air conditioning
Length
Width
Ground clearance
91.5 in (2323 mm)
101 in (2562 mm)
129 in (3283 mm)
98 in (2489 mm)
18 in (457 mm)
CONTROLS
Controller
Steering

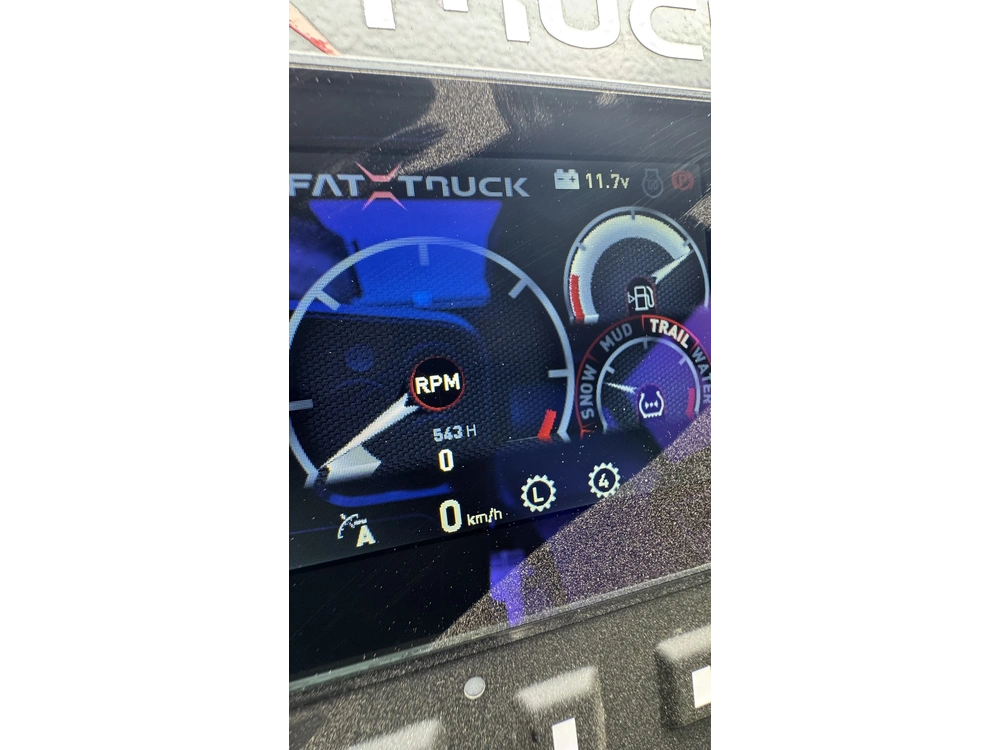

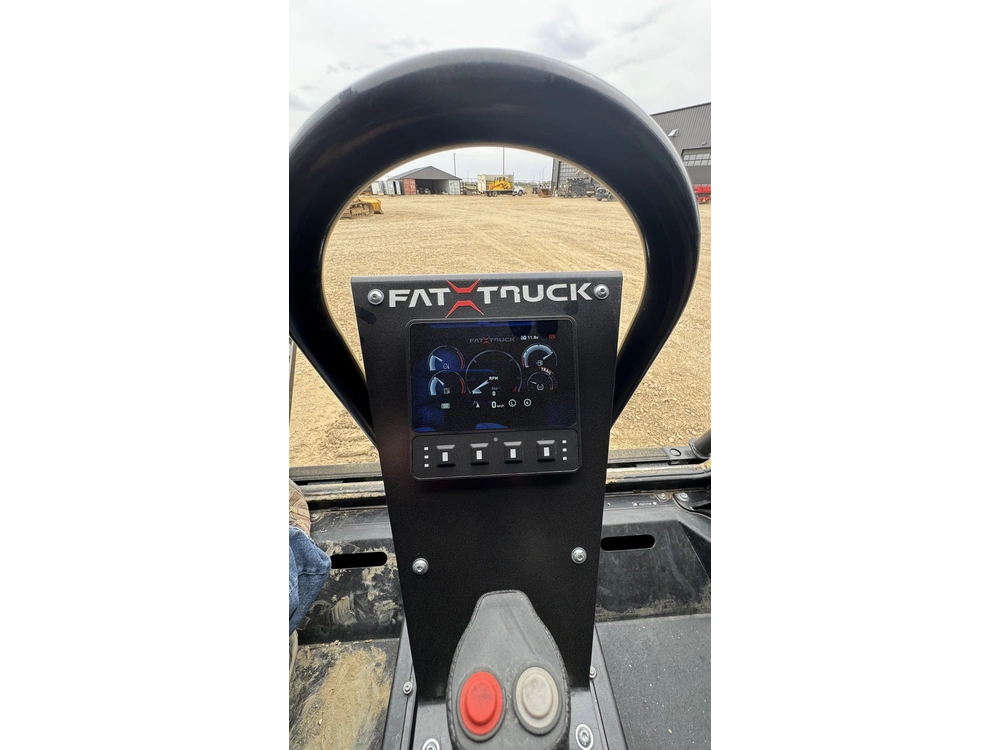

Display
Microprocessor
Joystick
Color display
WARRANTY
Limited 1 year / 1000 hours (Whichever comes first)

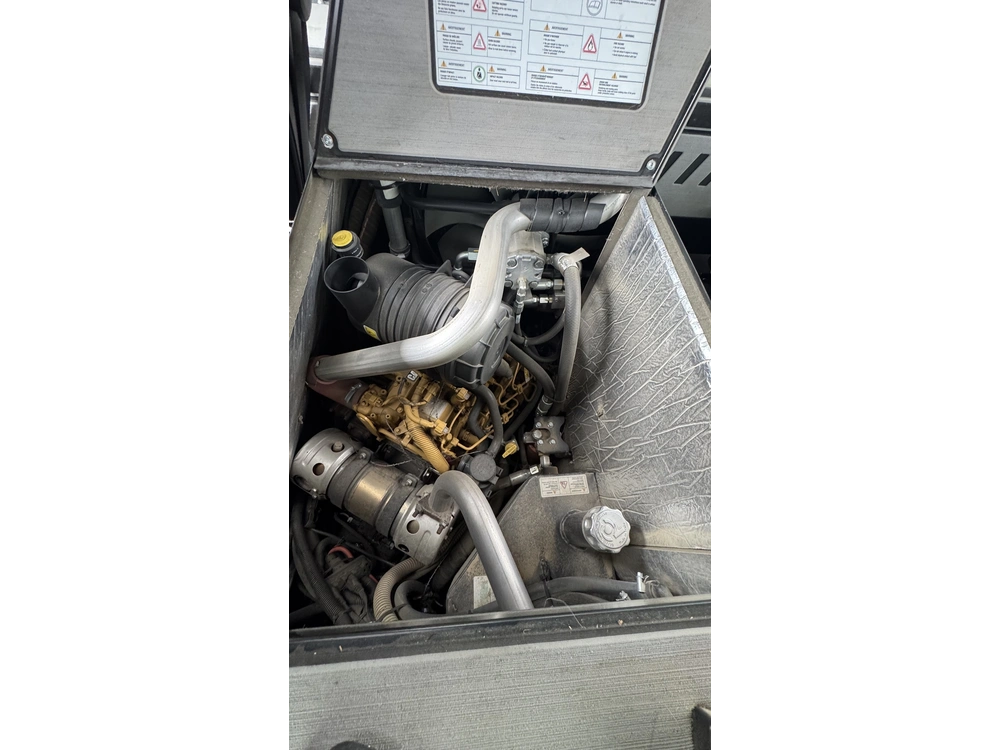

ENGINE
Make
Model
Emission standards
Number of cylinders
Displacement
Horsepower @ 2400 RPM
Torque @ 1600 RPM
Cooling system
HATZ
3H50TICD
EPA Tier 4 final
EURO Stage V
3 cylinders
89 po³ (1.46 L)
56 hp (42 kW)
136 lb-ft (184 N-m)
Liquid cooled
ELECTRICAL
Voltage
Alternator capacity
Battery capacity
Battery type
12 V
110 A
960 CCA
AGM
TRANSMISSION
Type Hydrostatic
BRAKES
Brakes
Parking brakes
Positive deceleration
through hydrostatic
transmission
Brake disc applied,
pressure released
TIRES
Front & Rear
Pressure
FAT TRUCK® LGP 52 x 24 x 20 in
0.5 to 6 PSI (0.0035 to 0.42 kg/cm2
)
FUEL SYSTEM
Capacity
Average fuel autonomy
19.5 US Gal (74 L)
12 h
STANDARD EQUIPMENT
Standard color: Black
Super Fat TiresMD

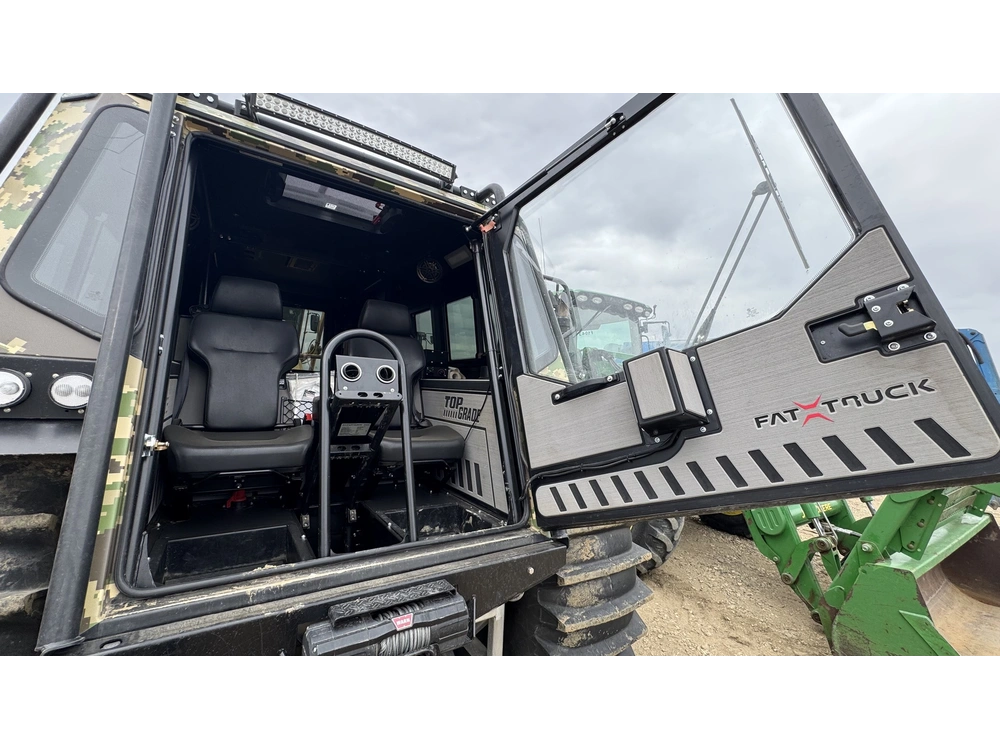

Front doors
Operator seats
Lights: Front, brakes, position, flashers, dome
Electric horn
Fire extinguisher 2.5 lb ABC
2 front seats with 3-point seat belts
Rear tailgate with ladder
Retractable front ladder and handles
Bilge pump
First aid kit
Front and rear bumpers
Lockable fuel cap
Cup holders
Operator & Maintenance manual

OPTIONs

JL Audio System with 12" sub

110V Engine & Hydraulic Tank Block Heaters

Roof Hatch

 Rear Cabin Coolant Based Heater (40,000 BTU)

Rear Hitch

Bilge Pump

Front & Rear D-Rings (4)

Rear Seats W/ 2 pts Safety Belts (3)

LED Amber Flashers (4)

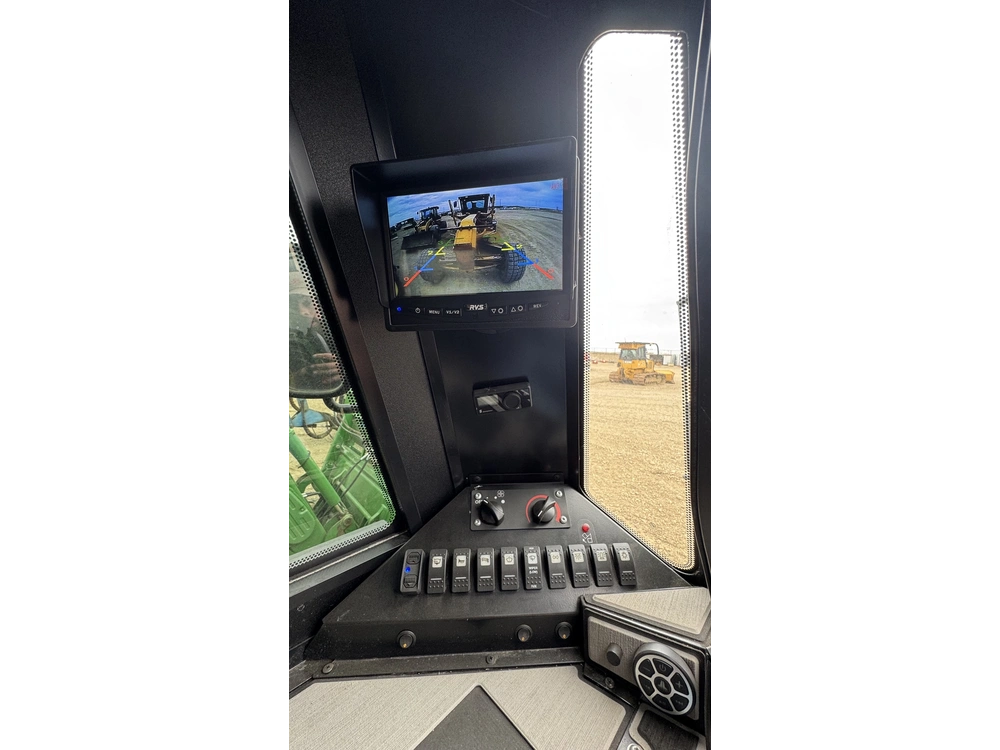

Back-Up Camera Back-Up Alarm

Winch Ready Front/Rear Front Winch Bumper, Recessed WARN Winch, Cab Control & Remote Control

 Electronic Adjustable Inclinometer With Alarm

Air Conditioning

Basic Brushguard

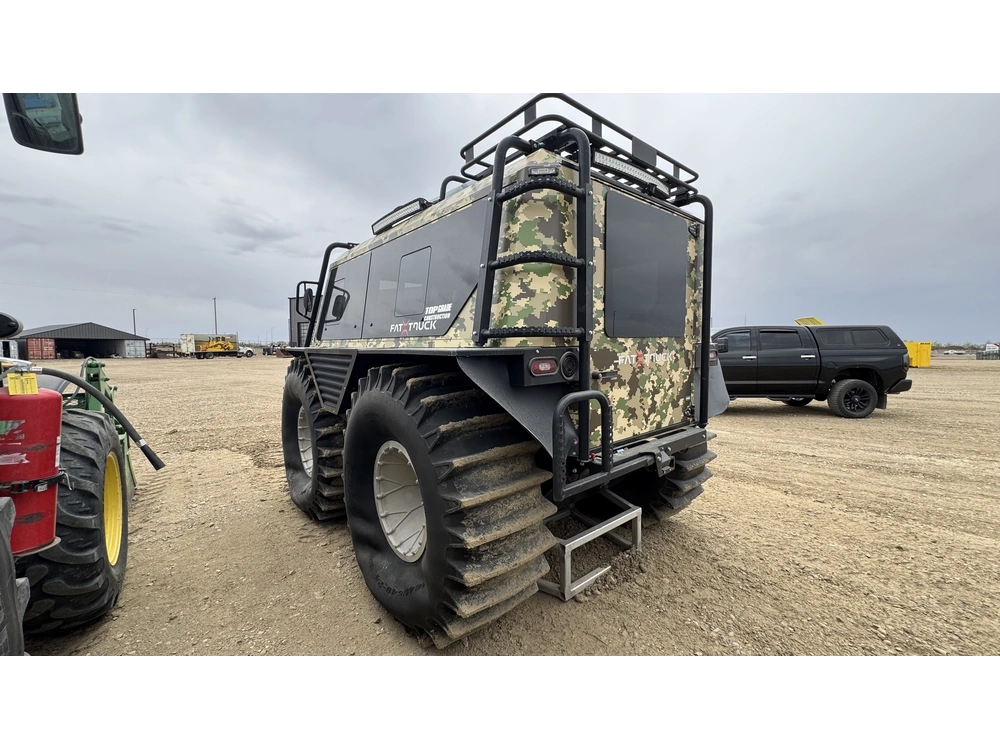

Roof Rack With Rear Ladder (300 lb Max Capacity)

Head Rests

Light Bars on all sides

Rear Receiver Winch

Wheel Pods are loose and can be mounteed

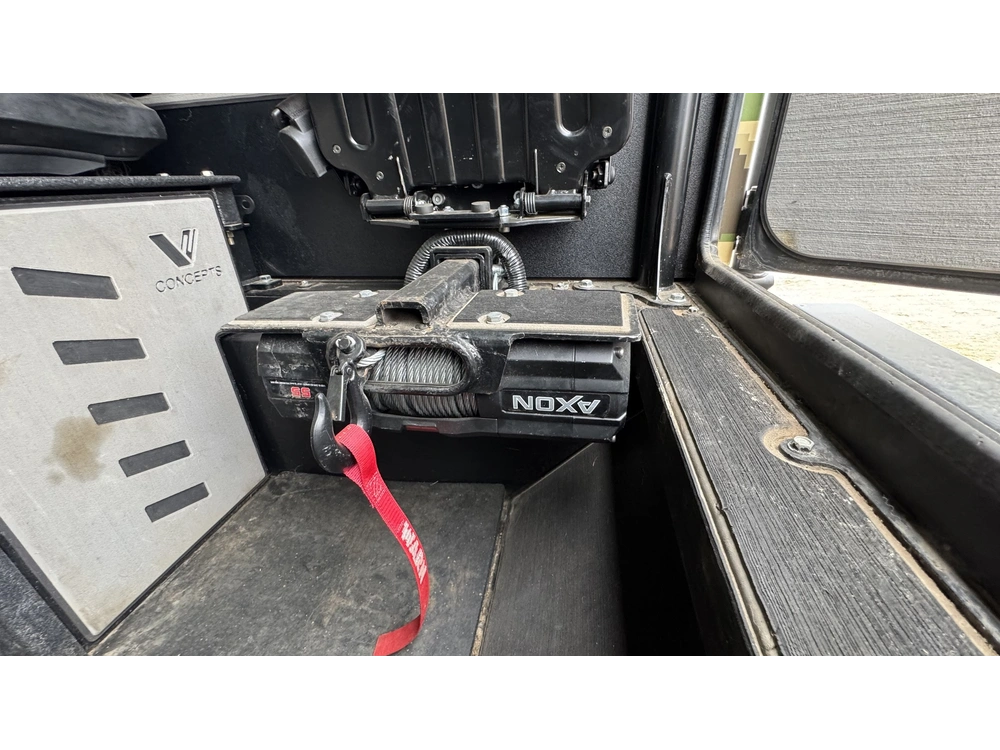

 Winch Inner Cab Mount (Fits Under Rear Seat)

Cabin Ventilation Fans (4)
